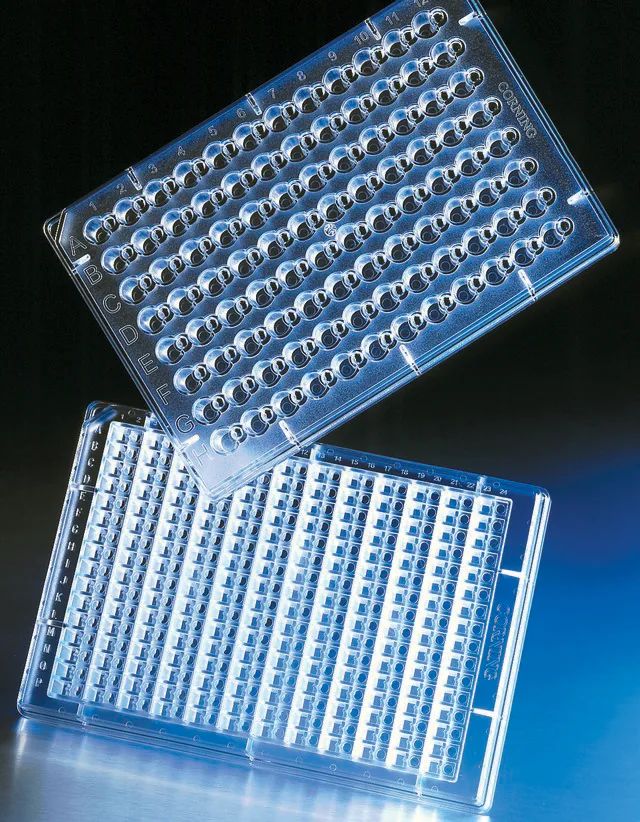

Corning^® CrystalEX^TM 96 well protein crystallization plates

产品说明

一般描述

• Designed for sitting-drop vapor diffusion high throughput protein crystallization
• Features 96 reservoir wells and 96 corresponding protein wells
• Total well volume for the reservoir well is 210 μL; for the protein well is 7 μL
• Working volume for the reservoir well is 25 to 150 μL
• Flat bottom (1.5mm diameter) protein wells provide better crystal viewing for automated imaging systems
• Well surfaces are treated to be hydrophilic for improved microdrop mixing
• Compatible with 8 and 12 channel manual pipettors, automated liquid handling work stations and imaging systems
• Novel merged well design provides efficient vapor space for protein crystallization
• Manufactured from an advanced polymer with high resistance to commonly used solvents, including acetone, acetic acid, butanone, ethanol, isopropanol, methanol, DMSO, nitric acid (65%), sulfuric acid (40%), hydrochloric acid (36%), and ammonia solution (33%)
• Low background polarization and high optical clarity allows protein crystals to be easily viewed under polarized light with minimal background interference
• Low water absorption of the polymer prevents loss of protein drop volume

法律信息

Corning is a registered trademark of Corning, Inc.
CrystalEX is a trademark of Corning, Inc.
